Rigging Your Gun with a Line Release (Open or Closed Muzzle)



Rigging your gun with a “Line Release Rig” is commonly used when hunting big game in deep water with a float line and float. It is designed to allow the spear (attached to a float/float line line via the shooting line) to be completely separated from the gun. After the spear separates from the gun, the hunter fights the fish from the surface. Additionally, this method allows the hunter to hold onto the gun by sliding one arm through the bands. This gives the hunter a method of defense against sharks.

tool kit

In your MAKO Attack Pack Tool Kit you will need:

  • E) Crimping tool
  • F) Scissors
  • H) Lighter

You will also need:

INSTRUCTIONS: LINE RELEASE RIG (OPEN AND CLOSED MUZZLE) ALSO KNOWN AS "BREAK AWAY RIG"

STEP 1
Insert spear into trigger mechanism to engage the line release.
Place the cord end of the 12” shock cord on the line release and make a mark on the barrel where the swivel lands with no tension. Then put a mark on the barrel where the swivel lands at full draw. Then put a mark on the barrel ½ way between the two marks.

bungieinstalledmarkmark

STEP 2
Remove spear from trigger mechanism and using a double barrel crimp, attach mono to spear (see basic crimping techniques). (see basic crimping techniques)

crimp

STEP 3
Re -insert spear into trigger mechanism and route mono up the barrel, through muzzle (if using a closed muzzle) or over tab (if using an open muzzle). Then, route mono back down barrel, and using a 2nd double barrel crimp, form a loop at the ½ way mark previously made on the barrel. If a longer shooting line is desired, the mono can be wrapped around line release, then back up and around muzzle notch and back down the barrel to the 1/2 way mark previously made on your barrel.

crimp

STEP 4

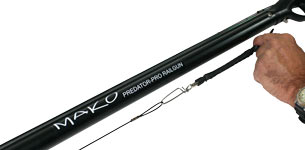

Attach "shock cord clip" to newly created loop in mono and connect the other end of shock cord to the line release..

attachcomplete

STEP 5
Attach one end of 10 ft. bungie (stretches to 20 ft) to round portion of shock cord clip.

attach bungieattach bungieattach bungieattach bungie

STEP 6

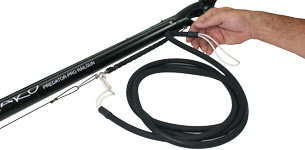

Route the other end of 10 ft bungie through the loop on the shock cord and pull tight to eliminate slack.

route bungie through looppull tight

STEP 7
Attach the other end of the 10 ft. bungie to floatline. The other end of the floatline is attached to the float

attach float line
